Models EG3000
Electron Gun and Control Electronics
Performance Features
- operation from 100-3000eV
- compatible with AES, charge neutralization and other surface analysis applications
- auto focus mode for small spot applications
- defocus mode for broad beam applications
- fully UHV compatible and bakeable
- integral magnetic shielding
The LK Technologies Model EG3000 Electron Gun with matching control electronics is suitable for a variety of surface analysis applications such as Auger electron spectroscopy, electron scattering and diffraction experiments, and charge neutralization. The electron beam energy can be continuously varied from 0.1-3 keV. The beam current is adjustable from 10 nA to greater than 100 µA. With the standard refractory metal cathode, the gun provides a minimum spot size of approximately 1mm at a working distance of 75mm.
The control electronics features an "autofocus" mode which maintains minimum spot size focus with beam energy variation as well as a "defocus" mode which allows operator adjustment to uniformly defocus electron beams up to 10mm in diameter (or greater, depending on working distance). The electron gun is fully UHV compatible, employs integral magnetic shielding and can be baked to 200°C. All electron guns are tested under UHV conditions prior to shipment. For special applications involving smaller spot sizes, cathode variations or other custom requirements, please consult LK Technologies.
Specifications
beam voltage: 0.1-3 kV, continuously adjustable
cathode: refractory metal (optional LaB6),
field replaceable
beam current: adjustable to 100 µA at 3 kV
spot size: nominal 1mm with standard cathode, defocus
control to 8-10mm

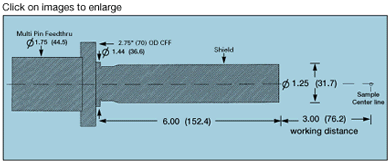

working distance: nominal 3.00 in. (76 mm)
gun length: 6.00 in. (152mm)
shielding: grounded magnetic shield
feedthrough: multiple pin brazed ceramic with shielded
connector
mounting: 2.75 in. (70mm) O.D. CFF with 1.50 in.
(38.1mm) I.D. (specify adaptor flange for 1.38 in. (34.9mm) I.D. tubing)
bakeout temperature: 200°C, maximum
control electronics: rack mounted, front panel control
and digital readout of beam voltage, filament current and lens voltages;
control of spot size with switch selectable autofocus or defocus modes
