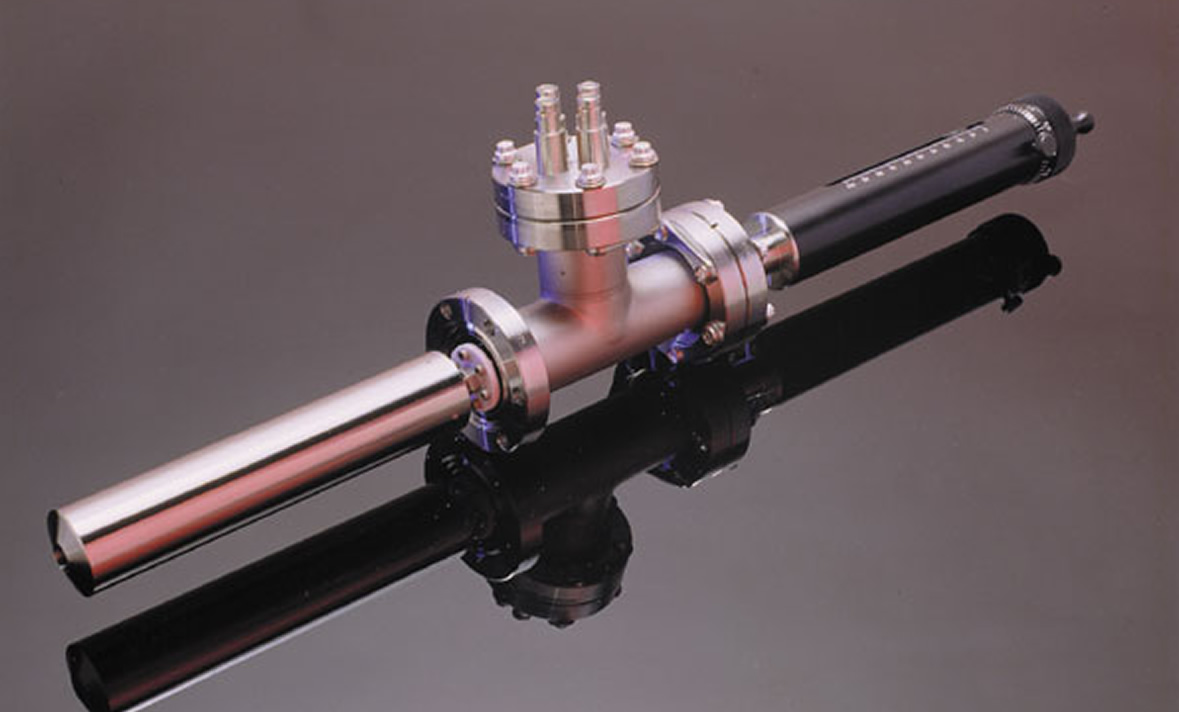

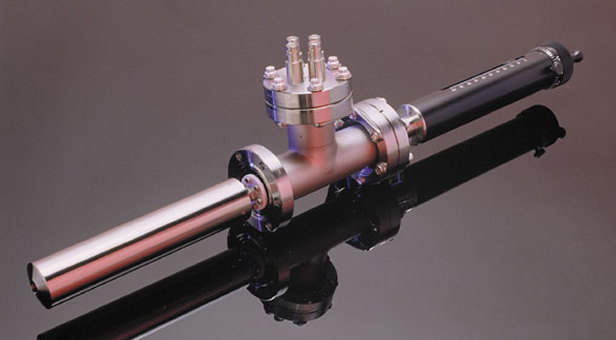

MINICMA ™
New! Now with Coaxial Electron Gun!
The Original Compact CMA introduced by LK Technologies with unmatched features. Use for general electron energy analysis including Auger (AES) and Photoelectron Spectroscopy (UPS, XPS).
- Mounting on 2.75″ (70 mm) flange with increased 4 mm working distance
- Fully retractable with precision, integral linear motion drive
- Advanced double pass optics with energy resolution better than 0.8 %
- Electronics available for both analog and pulse counting modes
- Ideal for experiments not accessible by conventional bulky analyzers
- Combine with the RVL2000 LEED optics for a low-cost, high-performance LEED/Auger system using our dual LEED/CMA controller
ELS5000
The world leader in HREELS performance for resolution and signal level. Now combine with our multichannel analyzer option (EA5000MCA) for unsurpassed data acquisition speed. Use to study surface molecular vibrations, surface phonons and plasmons as well as electronic energy levels and energy band gaps.
- Ultrahigh resolution of 0.5 meV FWHM
- Guaranteed detector current greater than or equal to 10pA at 1.0 meV resolution (FWHM)
- Employs new electrostatics deflectors with controlled angular aberrations
- Low-noise digital control electronics with menu driven software
- User selectable scan range up to 50 eV for vibronic/electronic applications
ELS5000
The world leader in HREELS performance for resolution and signal level. Now combine with our multichannel analyzer option (EA5000MCA) for unsurpassed data acquisition speed. Use to study surface molecular vibrations, surface phonons and plasmons as well as electronic energy levels and energy band gaps.
- Ultrahigh resolution of 0.5 meV FWHM
- Guaranteed detector current greater than or equal to 10pA at 1.0 meV resolution (FWHM)
- Employs new electrostatics deflectors with controlled angular aberrations
- Low-noise digital control electronics with menu driven software
- User selectable scan range up to 50 eV for vibronic/electronic applications

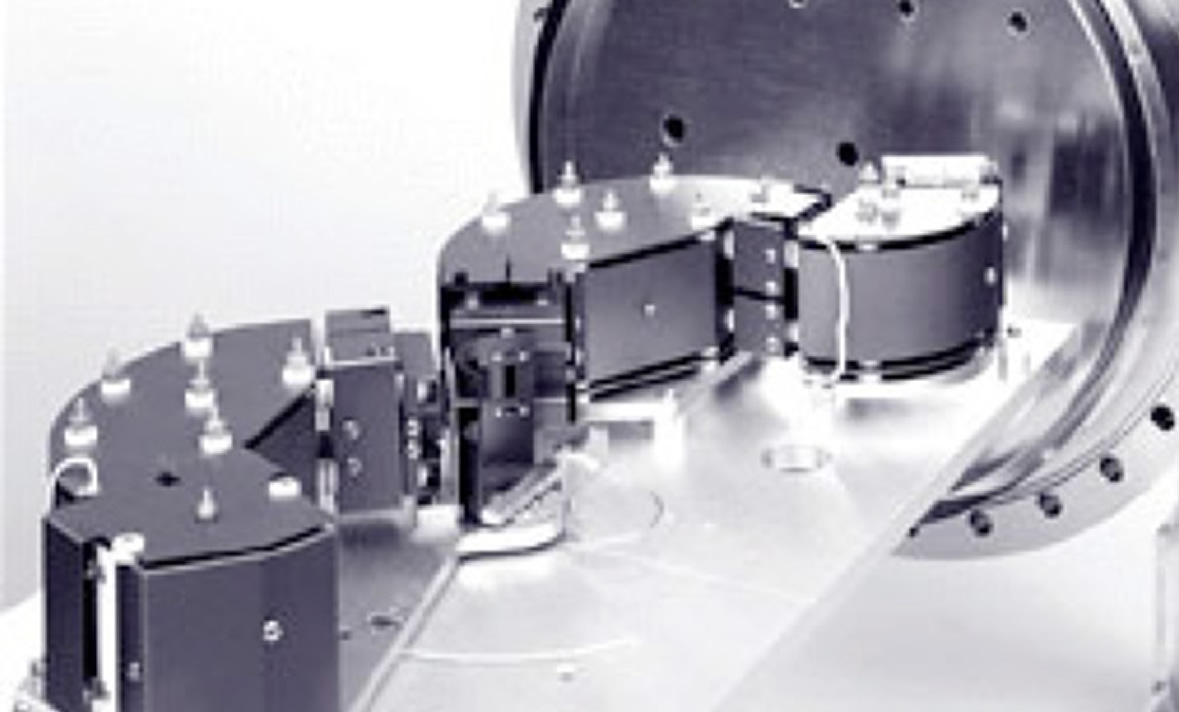

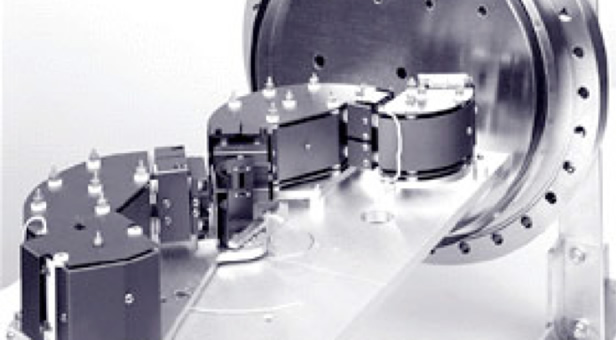

LK2000
The LK2000 HREELS instrument has seen widespread use in industrial and academic laboratories worldwide. It has been successfully applied to a diverse range of problems, including hydrocarbon chemisorption (catalysis) on metals, analysis of silicon wafer cleaning techniques, surface plasmons, characterization of polymer films, C60 film studies, and innumerable others.
- Resolution at 3 meV (FWHM) and below
- Rotatable and Fixed Optics Models
- Integral Dual Magnetic Shielding for Simple “Bolt-On” Installation

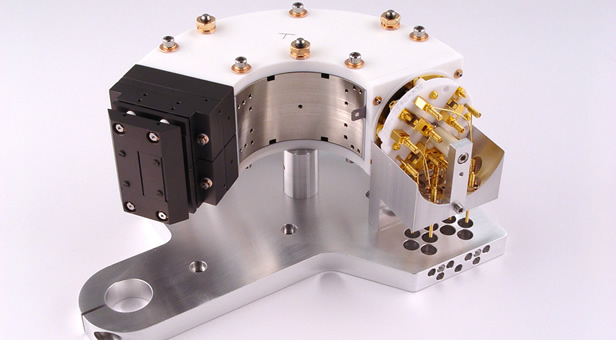

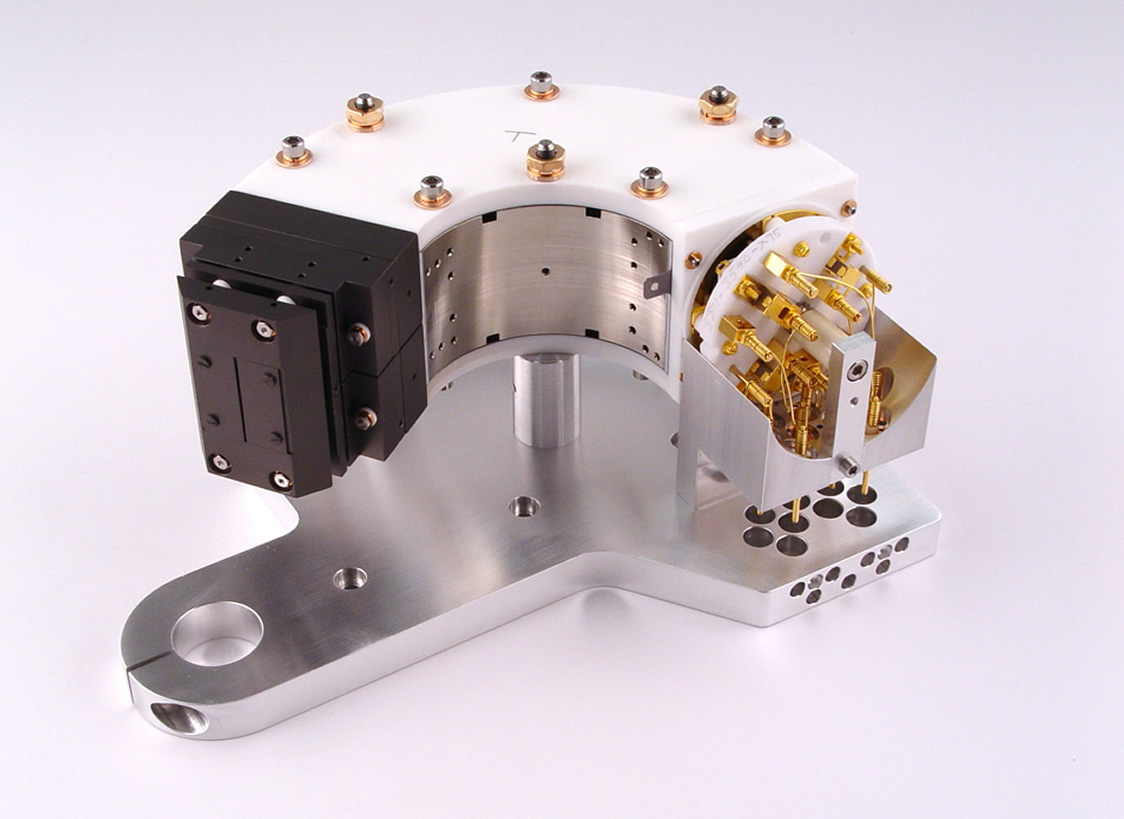

EA5000MCA
Multichannel Electron Energy Analyzer
The newest addition to our analyzers employs a position-sensitive detector for fast data collection while maintaining excellent resolution and a fully rotatable analyzer. A bolt-on fixed optics version with transfer lens and long working distance is also available.
- Wide gap cylindrical analyzer with excellent fringe field correction
- Multichannel plate for simultaneous data collection over 800 channels
- Complete spectra acquired in a few seconds to a few minutes
- Maintain high instrumental resolution to 1 meV
- Combine with the ELS5000 monochromator for high performance HREELS
- Analyzer may be retrofitted to the ELS5000 Spectrometer
EA5000MCA
Multichannel Electron Energy Analyzer
The newest addition to our analyzers employs a position-sensitive detector for fast data collection while maintaining excellent resolution and a fully rotatable analyzer. A bolt-on fixed optics version with transfer lens and long working distance is also available.
- Wide gap cylindrical analyzer with excellent fringe field correction
- Multichannel plate for simultaneous data collection over 800 channels
- Complete spectra acquired in a few seconds to a few minutes
- Maintain high instrumental resolution to 1 meV
- Combine with the ELS5000 monochromator for high performance HREELS
- Analyzer may be retrofitted to the ELS5000 Spectrometer
